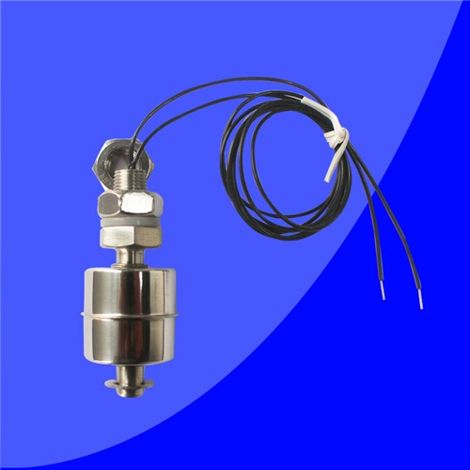

欧利旺液位开关 LS31-AH1-300
2026-01-04 10:11:07
6itao
参数 | 单位 | 数值 | 测试条件 |
接点形式contact Form | A型接点（常开）Normal open | ||
接点功率contact Rating | W- max. | 70 | |
开关电压switching voltage | v-max. | 350 | |
击穿电压Breakdownvoltage | v-min. | 600 | |
开关电流switching current | mA- max. | 1000 | |
负载电流carry current | A- max | 2.5 | |
接点阻抗Initial contact Resistance | Ω - max. | 0.2 | |
绝缘阻抗Insulation Resistance | Ω -min. | 106 | |
接点容量contact capacitance | pF-typ. | 0.30 | RH三45% |
使用温度范围operating Temperature | 校 | -40 ~ +150 | |
