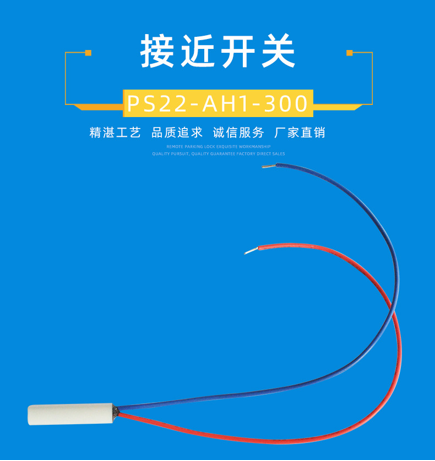

欧利旺接近开关 PS22-AH1-300
2026-01-04 10:04:48
6itao
参数Parametes | 单位 | 数值 | 测试条件 |
接点形式Contact Form | A型接点(常开)Normalopen | ||
接点功率Contact Rating | W-max | 50 | |
开关电压Switching Voltage | V-max | 300 | |
击穿电压Breakdown Voltage | V-min. | 500 | |
开关电流SwitchingCurrent | A-max | 0.6 | |
负载电流Carry Current | A-max | 2.0 | |
接点阻抗InitialContactResistance | Ω-max. | 0.3 | |
绝缘阻抗InsulationResistance | Ω-min. | 10⁶ | |
接点容量Contact Capacitance | pF-typ | 0.30 | RH≤45% |
使用温度范围Operating Temperature | ℃ | -40～+80 | |
